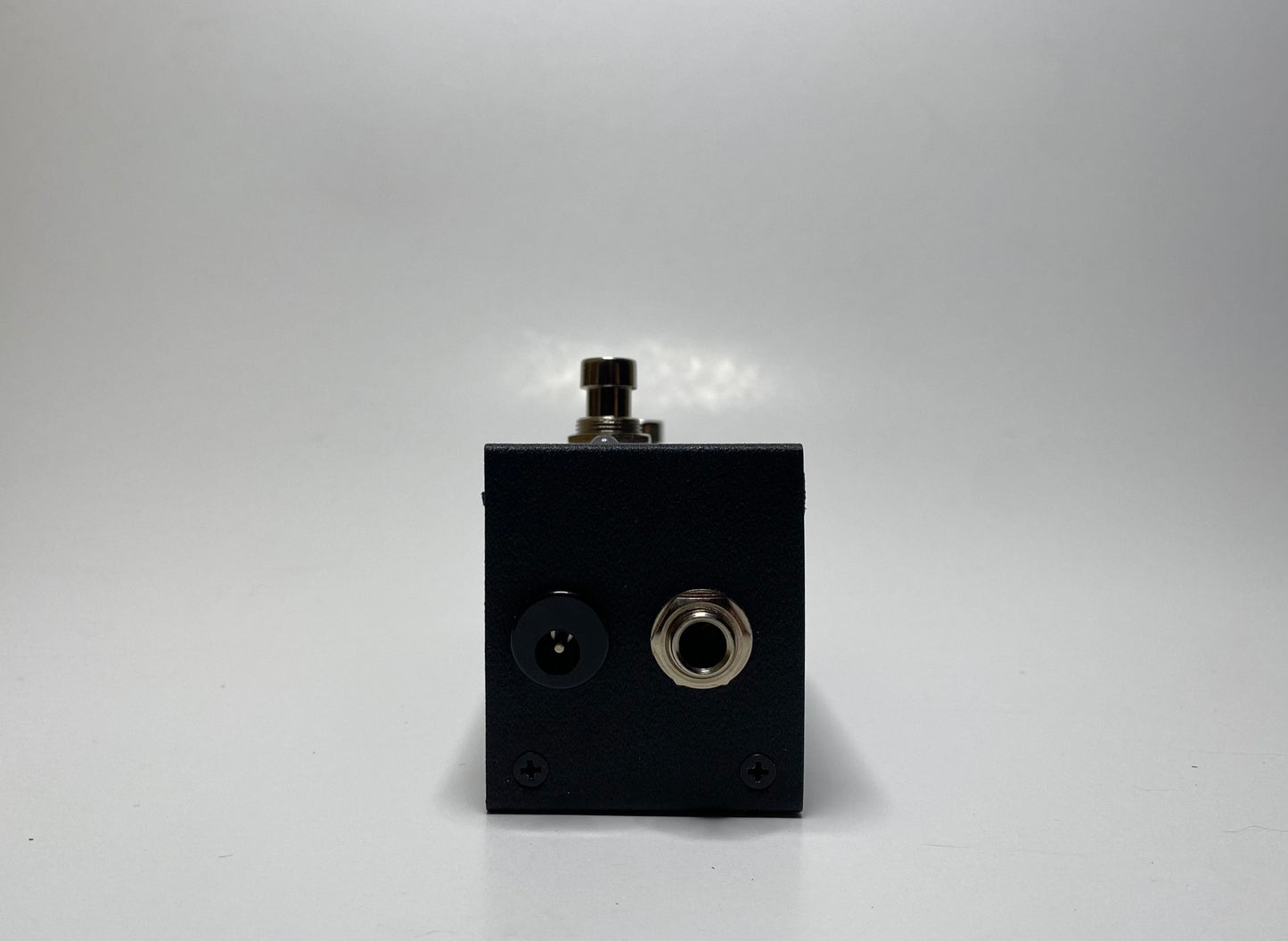

RJM PBC6X profile-matching latching switch

A utility switch companion for your  RJM® controller...

Fabricated by PdLS, a latching Extension Switch designed to match the enclosures of the RJM® Mastermind controller series. This is the ONLY family of switches on the market that accurately matches the enclosure profile of your RJM® controller.

If you are looking for an aux switch for your PBC, please see other listings with momentary switches. This latching switching was designed per request for a standard dual switch to be used for tasks such as changing the channel or reverb on an amp, or engaging any other functions triggered by a latching signal. Since not all devices adopt the same polarity for “on” vs. “off”, our switch employs no color LEDS to provide a reference state in either scenario - this means the LEDs are always on, and change color to indicate status. If you would prefer an “on/off” LED state please reach out directly.

Multiple filament options and colors are available on request. The standard offerings all use high performance materials (Pro PLA, PETG, and PETG-CF).

We keep some inventory of most products but sometimes develop a short queue. Please allow five to seven (5 - 7) business days for fabrication and shipping.

Feature & Specs:

• Two latching footswitches for control of your external devices (not the PBC) such as amp channel, reverb, etc.
• One ¼" TRS output
• Two bicolor LEDS to indicate switch status, regardless of device polarity
• One DC jack to power LEDS
• Roadworthy filament enclosure
• Custom colors on request

Dimensions:

PBC/6X: 1.75" x 4.125" || PBC/10: 1.75" x 5.3125" || LT: 1.75" x 5"
